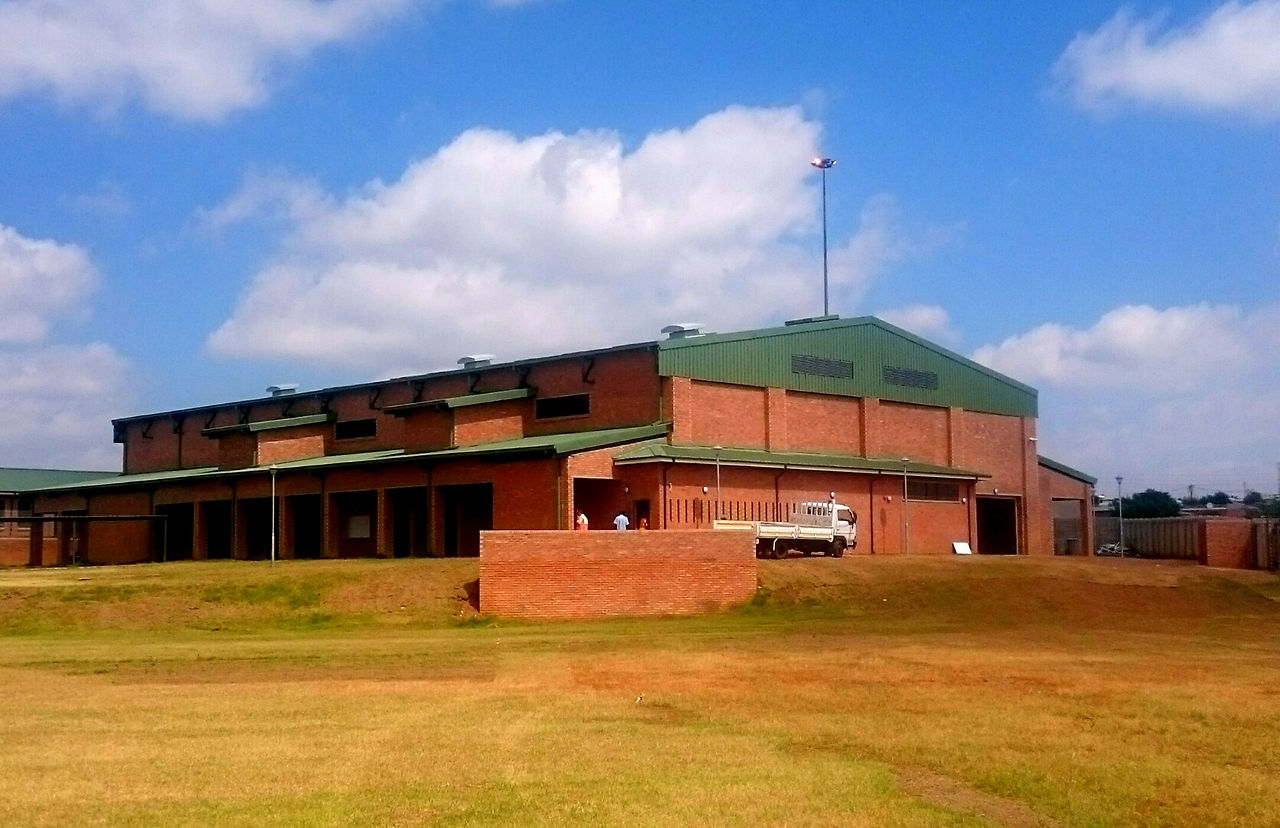

Curvent International (PTY) Ltd fitted and installed the following products for the department of Education, Rethabiseng Primary School, Bronkhorstspruit:

Curvent Fire-X 1620G Down-flow Forced Ventilation Fans SE Controls OS2 Control Panels SE Controls NV Logic Décor Safe Extraction Fans

We were requested to assist DSB water & fire consultants with the Natural Smoke Ventilation for both the Main School Hall and the Nutrition Hall for the Rethabiseng Primary School located just outside of Bronkhorstspruit.

We proposed the use of our Curvent Fire-X range of ventilators, ventilators were to be fusible link activated in the event of a fire. During meetings between Curvent & DSB it was decided that Curvent also assists with the CO2 monitoring of the main school hall as to increase the attention span of the learners, this is done by switching on the down flow forced ventilation fans to supply cleaner air in the hall and opening the roof ventilators to allow excess heat and stale air out of the school hall.

The system is activated via CO2 sensors, the SE Controls NV logic and OS2 Control panels making it a fully automated air control system. Another part of our scope of works was to supply band install Safe Room extraction fans, these are only 100mm in diameter as to prevent potential theft from the safe rooms.

Rudi Maritz faced several challenges on this project regarding constant local striking on site and tight deadlines.

Main Contractor: Trencon Construction (Pty) Ltd

Consultant: Johan La Grange DSB Water & Fire Consultants

Please contact us should you need advice on your Solar-shading project. +27 11 826 5959. Sales Consultant: Malcolm Lehy-Waites (Curvent International). Projects Manager: Rudi Maritz (Curvent International). System designer: Malcolm Lehy-Waites (Curvent International)
